EPC Motherboard Using Intel® Celeron® J6412: EPC-J6412
Model：EPC-J6412
CPU Type： Intel® Celeron® J6412, Quad-core, clock speed 2.00 GHz, up to 2.60GHz, TDP 10W
Motherboard Size：195mm*140mm
Memory： DDR4-2666/2933/3200MHz, SO-DIMM Slot, Single-pass Up to 32GB
Stroage：1*SATA 3.0,（7+15 high) 1*M.2(NVME X1 2280)
Network:2*Realtek RTL8111H 1Gb LAN Gigabit network port
Display Interface: 1*VGA: max resolution up to 2560*1600@60Hz Built-in reserved VGA1 socket 1*LVDS/eDP: LVDS, Dual channel 24 bit, max resolution up to 1920*1200@60Hz eDP, max resolution up to 1920*1200@60Hz eDP and LVDS colay design (one of two options,
Power Supply：Adopts DC 12V power supply
Operating System：Ubuntu18.4 Red Hat® Enterprise Linux® 32 ,64 Win10.11
Product Characteristics:
*Intel® Celeron® J6412, Quad-core, clock speed 2.00 GHz, up to 2.60GHz, TDP 10W
*Provide 4 USB3.0, 6 USB2.0
* Support 1*VGA,1*LVDS/eDP,1*HDM

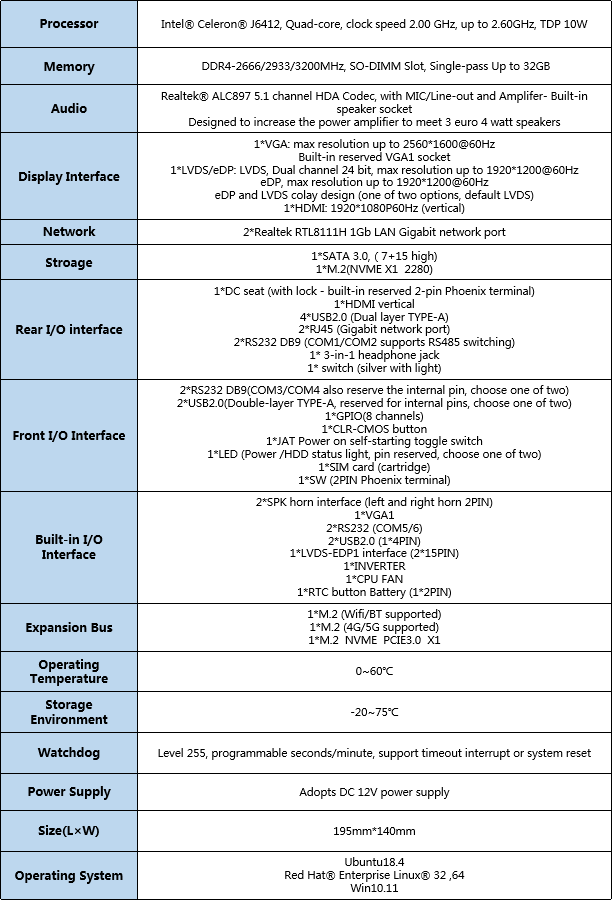

Product Specification:
*Product specifications are subject to change without prior notice

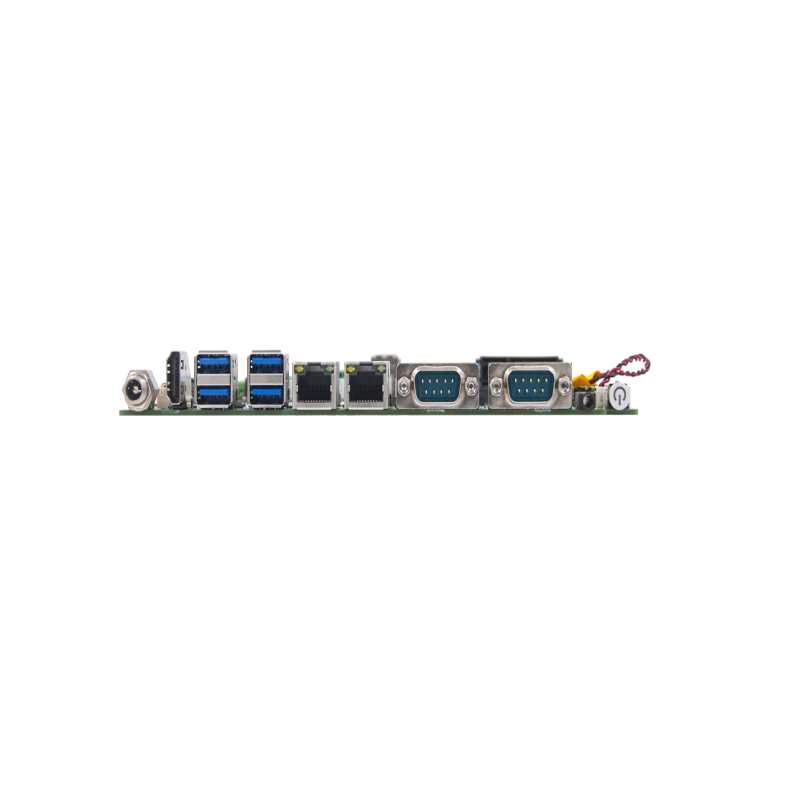

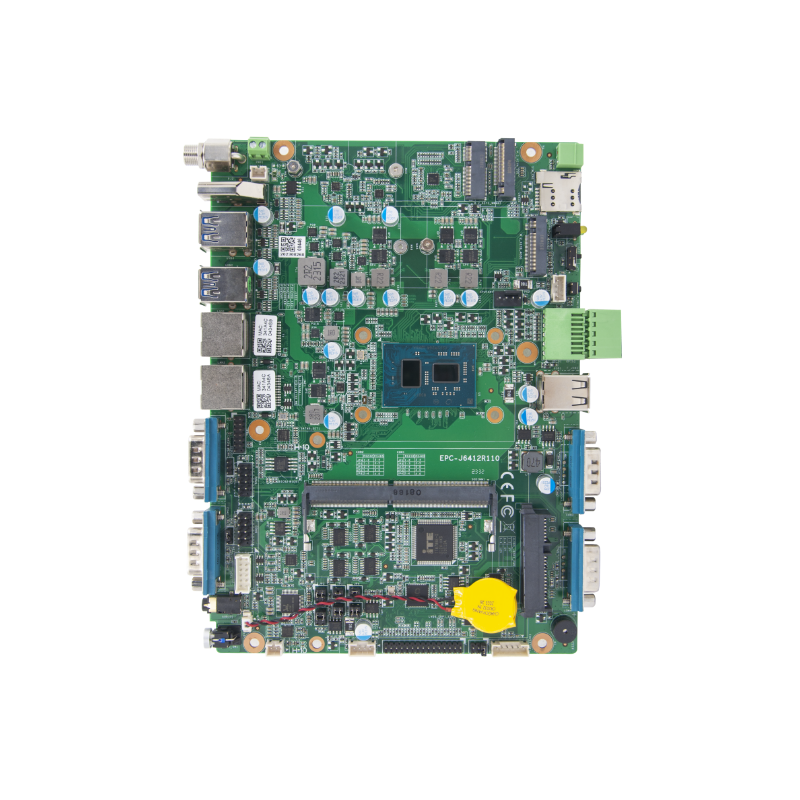

Product Appearance:
