ATX Motherboard With Intel W580 Series Chipset：IOT0-W580
Model：IOT0-W580
CPU Type： Intel® 12/13代 Generation CoreTM i3/i5/i7/i9, Pentium®, Celeron® CPU, LGA1700
Chipset：Intel W580
Memory: 4 x 288PIN DDR4 UDIMM slot, supports ECC, MAX= 128GB
Storage: 4 x SATA3.0 RAID 0, 1, 5, 10 1 x M.2 (Key-M, 2242/2260/2280, PCIe x4 Gen4 NVMe/ SATA SSD) (Default support 2260)
Network: Provides 2 x 10/100/1000Mbps network interface
Display Interface: 1×DP,1×VGA,1× HDMI, support independent three display output
Power Interface: ATX power supply, supporting S0, S1, S4, S5
Operating System：Ubuntu 18.04 Red Hat® Enterprise Linux® 32 ,64 Win 10/11
Product Characteristics：
*Support Intel LGA1700 package 12/13 generation i3/i5/i7/i9/Pentium™/Celeron™
* Supports 4*DIMM slots, up to 128G.
* 7* USB 2.0\6*USB 3.0 available
* Support VGA/HDMI/DP, single display double display three display copy, extended display output
* Adopt Intel network chip to ensure high-speed and stable data transmission

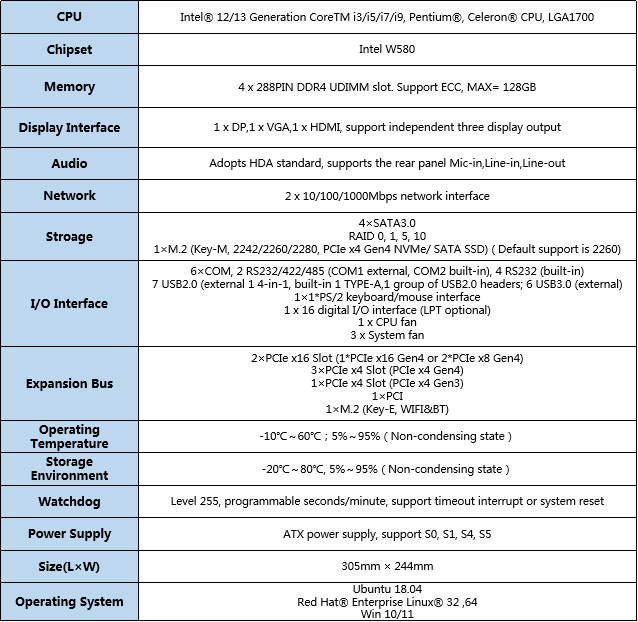

Product Specification：
*Product specifications are subject to change without prior notice
Product Appearance：
