ATX Motherboards With Intel Q470&Z490 Series Chipset：IOT0-Q470
Model：IOT0-Q470
CPU Type： Intel® LGA1200 10/11代 Core i3/i5/i7/i9 CPU, TDP 125W
Chipset：Intel Q470&Z490
Memory: 4 x 288PIN DDR4 UDIMM slot, supports a maximum of 128GB
Storage: 1 x M.2 NVMe 2280 SSD2 x SATA3.0 Supports RAID 0, 1, 5, 10 1 x M.2 (Key-M, 2242/2260/2280, PCIe x4 Gen3 NVMe/ SATA SSD)
Network: 2 x 10/100/1000Mbps network interface (intel I225/226-V)
Display Interface: 1 x DP, 1 x VGA, 1 x HDMI support independent three display
Power Interface: ATX power supply, supporting S0, S1, S4, S5
Operating System：Ubuntu 18.4 Red Hat® Enterprise Linux® 32 ,64 Win10/11
Product Characteristics：
*Support Intel LGA1200 package 10/11 Core i3/i5/i7/i9 TDP 125W
* Support Dual channel (Non-ECC) DDR4 2666/2933 up to 128GB
* Multi-pcie Gen3 extension; 2×PCIe x16\3 x PCIe x 4\1 x PCI \6 x COM\7 x USB 2.0\6 x USB 3.0
*1 x M.2 (Key-M, 2242/2260/2280, PCIe x4 NVMe/ SATA SSD)
*Support VGA/HDMI/DP three screen display
* I225&I226-V network chip to ensure high-speed and stable data transmission
* Information security: built-in TPM 2.0; 1 x USB 2.0 type A connects to a dongle

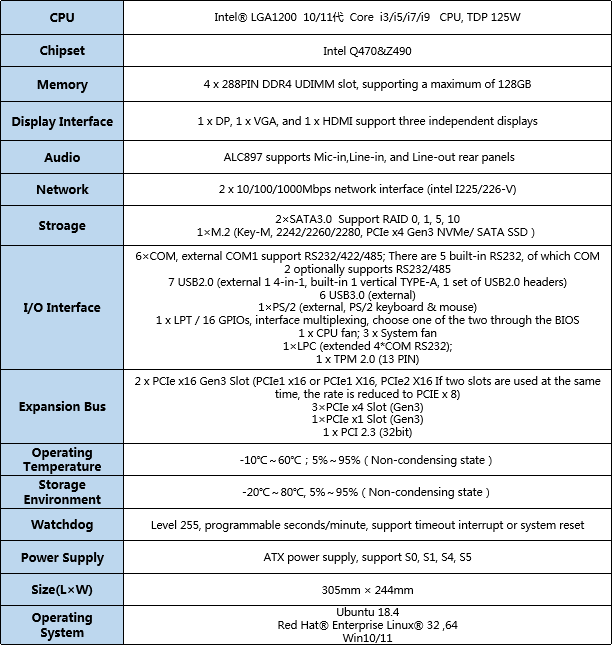

Product Specification：
*Product specifications are subject to change without prior notice
Product Appearance：
