ATX Motherboard With Intel H110 Series Chipset：IOT0-H1101
Model：IOT0-H1101
CPU Type：Intel LGA1151 Gen6/7 i3/i5/i7 CPU、Support Pentium/Celeron CPU
Chipset：Intel H110
Memory: Provides 2 x 288PIN DDR4 2133/2400MHz DIMM slots with a single 16GB DIMM and a maximum of 32GB
Storage: Provide 4 x SATA interface (support SATA3.0 standard, default support 3),1 x mSATA
Network: Provides 2 x 10/100/1000Mbps network interface
Display Interface: 1×DVI,1×VGA,1× HDMI,1× internal display expansion interface (optional), support independent dual display output; VGA supports a maximum resolution of 1920×1200@60HZ and 32bit color depth
Power Interface: ATX power supply, supporting S0, S4, S5
Operating System：Ubuntu 15.1 Red Hat® Enterprise Linux® 32 ,64 Win7/10/11
Product Characteristics：
*High density PCB laminated structure, fully ensure signal shielding, improve system stability
* Built-in digital display expansion interface, can be extended according to product application requirements, LVDS, VGA, eDP and other standard display interface
* Buckle interface design, improve the reliability of interface connection, easy system maintenance
* Provide onboard encryption scheme (optional), which can realize hardware and software binding or key data storage and encryption
* Intel network chip to ensure high-speed and stable data transmission

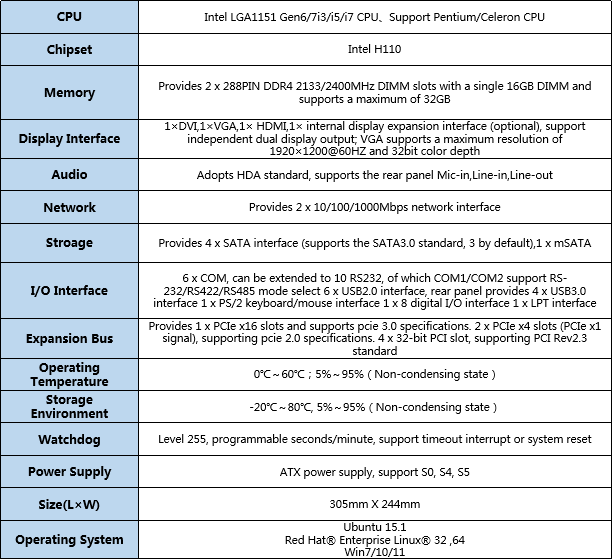

Product Specification：
*Product specifications are subject to change without prior notice
Product Appearance：
