Thin Mini-ITX motherboard with Intel B760 series chipset：TB760-D5
Model：TB760-D5
CPU Type：Support 12Gen/13Gen/14Gen Intel core I7, I5, I3 Pentium, Celeron Processor in 1700Pin(65W)
Chipset：B760
Memory：2*SO_DIMM DDR5 1.10V 4800MHZ 频率内存 最大支持64G
Storage：2×SATA3.0 Rate 600 MB/s（Default）+ 1×M.2 pcie4.0 X4 ( pcie &sata Self-adaptation ，Support 2280/2260/2242)
CPU：By CPU
Display Interface： 1×VGA （Maximum resolution：1920 x 1080 @ 60Hz) 1×HDMI （Maximum resolution：3840 x 2160 @ 60Hz） 1×LVDS Colay EDP （Maximum resolution：1920 x 1080 @ 60Hz)
Power input：19V/6.3A is recommended
Operating System：Win10/11/Linux® 64
Product Characteristics：
*Support Intel LGA1700 package 12/13/14 i7/i5/i3/Pentium™/Celeron™
*Supports two SO-DIMM slots, up to 64 GB
*5*USB 2.0, 1*USB 3.0, 3*USB 3.2 available
*Support VGA/HDMI display output
*Supports LVDS display output
*Realtek network chip is used to ensure high-speed and stable data transmission

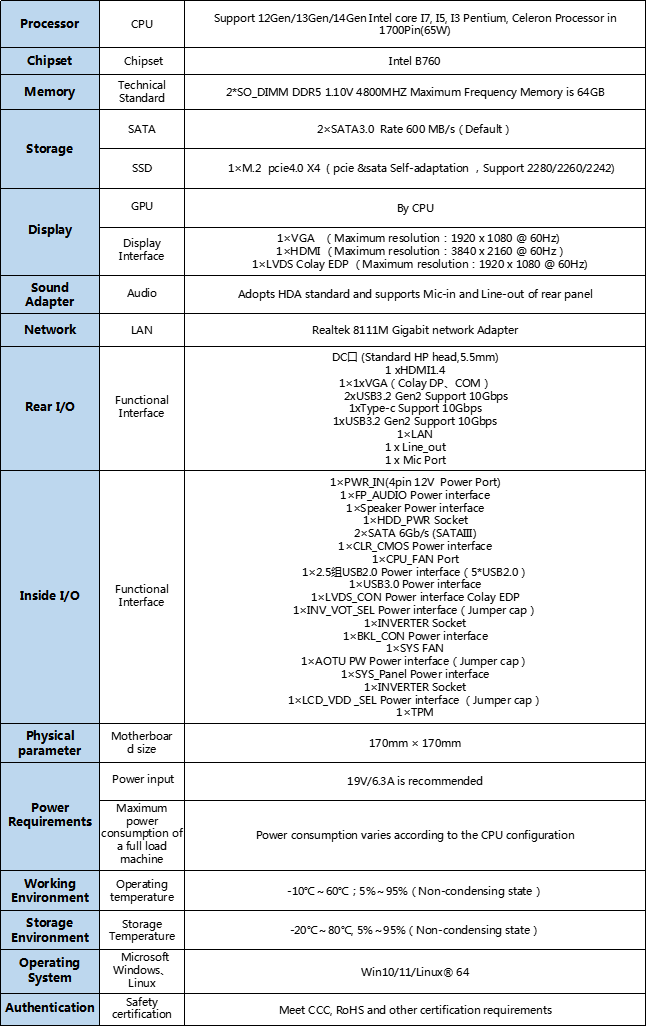

Product Specification：
Product Appearance：
