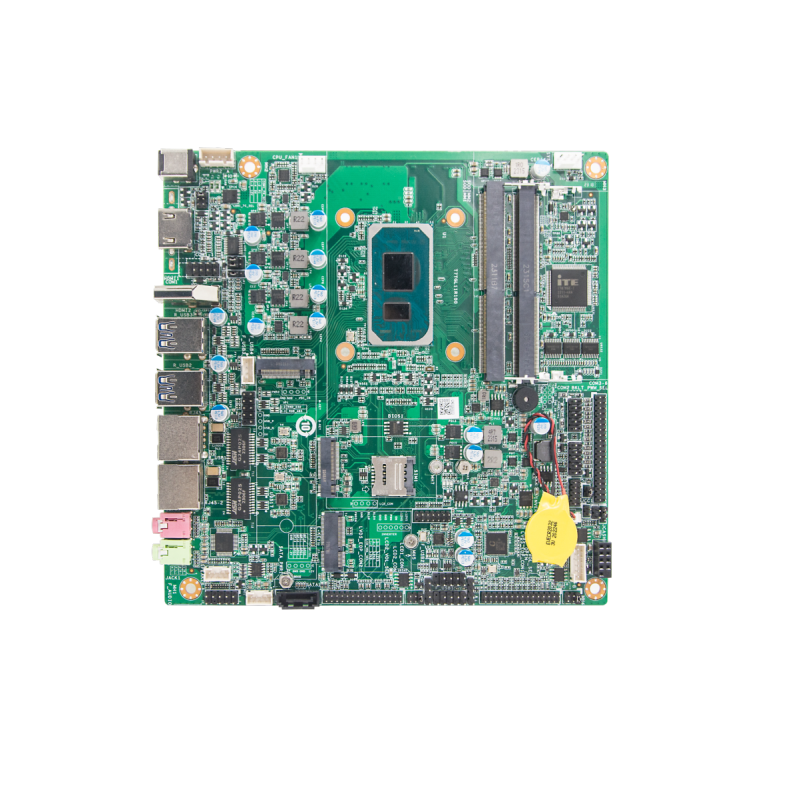

搭载Intel® Tiger Lake平台处理器的Mini-ITX主板:T7TGL11U

型号:T7TGL11U

CPU处理器:Intel® Tiger Lake Core TM (Premium-U) i3/i5/i7,Celeron® (Base-U)

主板尺寸:170mm *170mm

内存:Support DDR4 3200 MHz, SO-DIMM Slot, 双通 Up to 64GB

存储:1 x M.2 NVMe 2280 SSD1 * SATA3.0 7P Connector (with 1 * SATA Power Header) 1 * M.2 (NGFF) Key-M Slot (PCIe x4 NVMe SSD, 2280) Support PCIe x4 Gen4 NVMe SSD(Celeron时为Gen3) 1 * M.2 (NGFF) Key-B Slot, Support SATA

网络:2 * Realtek GBE LAN Chip (RJ45, 10/100/1000 Mbps)--RTL8111H 其中LAN1为colay双层USB2.0 TYPE-A,默认LAN2

显示接口:1 * HDMI1 1.4 (TYPE-A): max resolution up to 4096x2160@30Hz 1 * LVDS (Header): LVDS max resolution up to 1920x1080@60Hz(双通colay edp1,默认LVDS) 1 * eDP2 1*HDMI2 1.4(与COM1 DB9 colay,默认HDMI2) (Header): eDP max resolution up to 4096*2160@60Hz 支持四显

电源接口:1 * DC 12V Power Input Φ2.5mm Jack--colay 1 * 4PIN

操作系统:Ubuntu15.1 Red Hat® Enterprise Linux® 32 ,64 win7 SP1 ,8.1 ,10

产品说明

产品特点:

*支持Intel® tiger lake  Core TM (Premium-U) i3/i5/i7  CPU

*提供6个USB 2.0\4个USB 3.0

*支持HDMI/LVDS/EDP,单显双显三显复制

*采用Realtek网络芯片

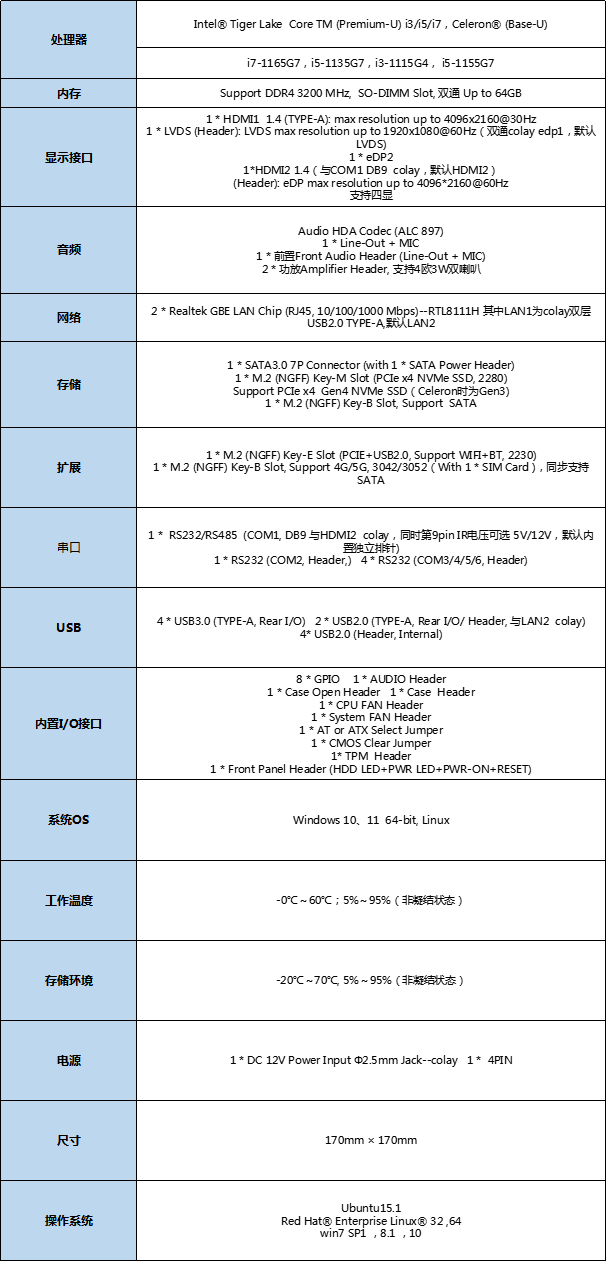

产品规格:




产品尺寸:
